Every component in a train system need to function well. This keeps the system risk-free and efficient. Railway casting parts are extremely vital. They supply assistance, attach points, and conduct signals. Their top quality impacts just how secure the train network is. When you purchase these components for South Africa, South America, or Russia, you have to locate excellent suppliers. To be successful, you require to recognize the local technical policies. Right here are 5 key high quality criteria you have to always adhere to.
1. Product Structure & Mechanical Characteristics: The Foundation of Quality
The performance of actors iron relies on its particular chemical make-up and spreading process, and must satisfy the global or regional standards of the target market. A trustworthy railway casting parts manufacturer will provide full product traceability.
1.1 Structure Standards: Need to abide by criteria such as International Requirements (ISO), European Standards (EN), Russian GOST requirements, or those generally made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The material of dangerous components like phosphorus and sulfur should be strictly regulated.
1.2 Mechanical Residences: Concentrate on tensile toughness, return strength, solidity, and elongation. For ductile iron, describe criteria such as ISO 1083, EN 1563, or GOST 28394. Procurement ought to call for providers to give material certificates and mechanical test reports that abide by the target audience’s needs.

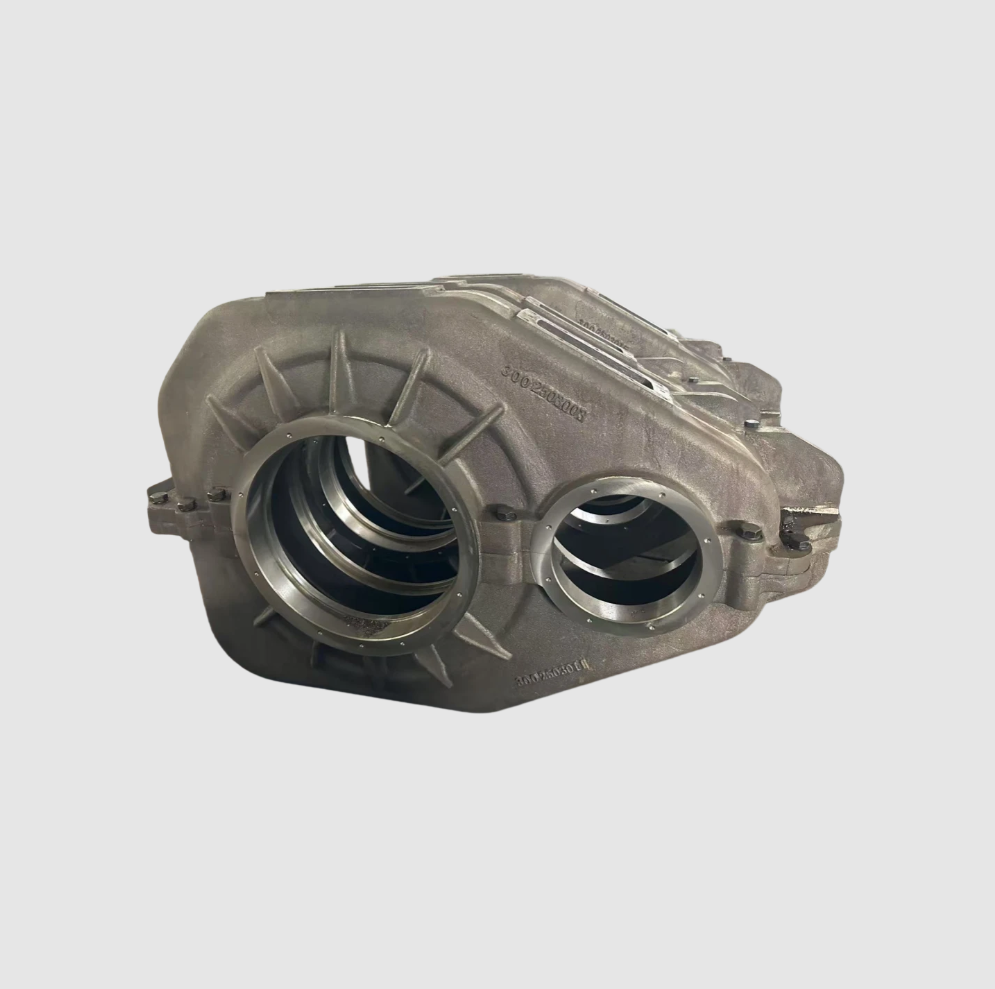

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Certain a “Perfect Fit”
Train projects worldwide have strict demands for dimensional interchangeability; any deviation can influence system combination. Accuracy is a mark of exceptional train casting manufacturers.
2.1 Critical Measurements: All user interface dimensions and mounting hole settings for all railway casting elements should be 100% inspected.
2.2 Tolerance Criteria: Ought to abide by worldwide acknowledged standards like ISO 2768, or specific resistance requirements clearly agreed upon with the customer. For the Russian and CIS markets, unique interest has to be paid to adhering to appropriate tolerance specifications in GOST 30893.
3. Restrictions on Casting Problems: Getting Rid Of Inner Hidden Dangers
The approval requirements for casting defects should be clearly defined in contracts and based upon worldwide or regionally acknowledged specifications. Leading train spreading components manufacturer operations use rigorous non-destructive screening.
3.1 Surface area Defects: Requirements like ISO 8062 can be referenced for analyzing spreading surface top quality. Splits, chilly shuts, and other flaws influencing utility are not permitted.
3.2 Interior Issues: For crucial load-bearing train spreading elements, non-destructive testing (e.g., ultrasonic, radiographic) need to be executed according to criteria like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear approval degrees for problems.
4. Metallographic Framework & Internal Quality
The tiny framework of the material is the essential basis for judging whether its interior top quality meets the standard. This is a crucial look for any professional railway spreading parts manufacturer.
4.1 Ductile Iron: The assessment of nodularization rate need to follow requirements such as ISO 945-1 or GOST 3443 to guarantee its mechanical buildings satisfy the needs for usage under complicated working problems.
4.2 Graphite Morphology & Matrix Framework: The metallographic assessment report is a vital record for validating the stability of the production process and should abide by the pertinent international or local criteria.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Quality: Withstanding Harsh Environments
Offered South Africa’s coastal high salinity, South America’s exotic rainforest moisture, and Russia’s extreme cool and de-icing salts, anti-corrosion treatment for railway spreading components is essential.
5.1 Therapy Procedures: Define the sort of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy coating, etc, and define key indications like finish thickness, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Standards: Should pay attention to certain demands of the target audience, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Criterion) requirements. A worldwide train casting makers will know with these diverse demands.
