1. Material Principles and Microstructural Characteristics of Alumina Ceramics
1.1 Composition, Purity Grades, and Crystallographic Quality

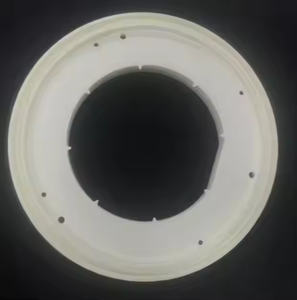

(Alumina Ceramic Wear Liners)
Alumina (Al Two O TWO), or light weight aluminum oxide, is one of one of the most extensively utilized technological ceramics in industrial design due to its exceptional balance of mechanical strength, chemical security, and cost-effectiveness.
When crafted right into wear linings, alumina ceramics are normally made with purity levels varying from 85% to 99.9%, with greater purity corresponding to boosted hardness, wear resistance, and thermal efficiency.
The dominant crystalline stage is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure defined by strong ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose dimension and distribution are regulated throughout sintering to optimize mechanical buildings.
Grain dimensions normally range from submicron to several micrometers, with finer grains generally improving fracture sturdiness and resistance to split proliferation under unpleasant packing.
Small ingredients such as magnesium oxide (MgO) are usually introduced in trace amounts to prevent uncommon grain growth during high-temperature sintering, making certain consistent microstructure and dimensional stability.
The resulting material exhibits a Vickers firmness of 1500– 2000 HV, significantly exceeding that of set steel (normally 600– 800 HV), making it remarkably resistant to surface degradation in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear linings are selected largely for their outstanding resistance to unpleasant, abrasive, and moving wear devices widespread wholesale product taking care of systems.
They possess high compressive strength (as much as 3000 MPa), great flexural stamina (300– 500 MPa), and outstanding stiffness (Young’s modulus of ~ 380 Grade point average), enabling them to endure intense mechanical loading without plastic contortion.
Although inherently fragile contrasted to steels, their reduced coefficient of rubbing and high surface area solidity reduce particle bond and lower wear rates by orders of magnitude relative to steel or polymer-based choices.
Thermally, alumina maintains architectural stability up to 1600 ° C in oxidizing ambiences, enabling usage in high-temperature processing atmospheres such as kiln feed systems, boiler ducting, and pyroprocessing devices.
( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional stability throughout thermal cycling, decreasing the risk of splitting as a result of thermal shock when correctly mounted.
Furthermore, alumina is electrically shielding and chemically inert to a lot of acids, antacid, and solvents, making it suitable for harsh settings where metal linings would certainly weaken rapidly.
These mixed homes make alumina ceramics ideal for securing vital infrastructure in mining, power generation, cement production, and chemical handling industries.
2. Production Processes and Layout Assimilation Methods
2.1 Shaping, Sintering, and Quality Control Protocols
The production of alumina ceramic wear linings includes a series of precision manufacturing actions developed to accomplish high thickness, minimal porosity, and regular mechanical performance.
Raw alumina powders are refined with milling, granulation, and forming strategies such as completely dry pushing, isostatic pushing, or extrusion, depending upon the wanted geometry– tiles, plates, pipelines, or custom-shaped sections.
Eco-friendly bodies are after that sintered at temperatures between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and achieving family member densities surpassing 95%, usually approaching 99% of academic thickness.
Complete densification is important, as recurring porosity serves as stress and anxiety concentrators and accelerates wear and fracture under solution conditions.
Post-sintering operations might consist of ruby grinding or washing to attain tight dimensional resistances and smooth surface coatings that reduce rubbing and fragment trapping.
Each set goes through rigorous quality assurance, consisting of X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural evaluation, and solidity and bend screening to verify conformity with international criteria such as ISO 6474 or ASTM B407.
2.2 Mounting Methods and System Compatibility Factors To Consider
Efficient integration of alumina wear linings right into industrial tools needs cautious focus to mechanical accessory and thermal development compatibility.
Usual installation methods include glue bonding making use of high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Glue bonding is commonly made use of for flat or carefully rounded surfaces, offering uniform tension distribution and resonance damping, while stud-mounted systems permit easy replacement and are preferred in high-impact areas.
To accommodate differential thermal development in between alumina and metal substrates (e.g., carbon steel), crafted gaps, adaptable adhesives, or compliant underlayers are included to stop delamination or breaking during thermal transients.
Developers need to additionally think about side defense, as ceramic tiles are susceptible to breaking at revealed corners; solutions consist of beveled sides, metal shrouds, or overlapping tile configurations.
Proper installment guarantees long service life and optimizes the safety function of the lining system.
3. Wear Devices and Performance Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear liners master settings dominated by 3 key wear mechanisms: two-body abrasion, three-body abrasion, and bit disintegration.
In two-body abrasion, tough bits or surface areas straight gouge the liner surface, an usual event in chutes, hoppers, and conveyor shifts.
Three-body abrasion involves loose fragments trapped in between the liner and relocating product, causing rolling and scraping activity that progressively gets rid of material.
Erosive wear occurs when high-velocity fragments strike the surface, specifically in pneumatic conveying lines and cyclone separators.
Because of its high firmness and low fracture strength, alumina is most reliable in low-impact, high-abrasion scenarios.
It carries out remarkably well against siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be decreased by 10– 50 times contrasted to light steel linings.
However, in applications including duplicated high-energy influence, such as primary crusher chambers, hybrid systems incorporating alumina ceramic tiles with elastomeric backings or metallic shields are commonly used to absorb shock and protect against crack.
3.2 Area Screening, Life Cycle Analysis, and Failure Mode Evaluation
Performance evaluation of alumina wear liners involves both lab screening and area monitoring.
Standardized tests such as the ASTM G65 completely dry sand rubber wheel abrasion examination supply relative wear indices, while tailored slurry erosion gears simulate site-specific conditions.
In industrial settings, use price is normally determined in mm/year or g/kWh, with service life forecasts based on initial thickness and observed destruction.
Failure modes consist of surface area polishing, micro-cracking, spalling at edges, and total ceramic tile dislodgement due to adhesive deterioration or mechanical overload.
Origin analysis typically discloses installment errors, improper quality option, or unanticipated effect loads as key factors to premature failing.
Life cycle expense analysis consistently demonstrates that regardless of higher first costs, alumina liners offer remarkable total price of ownership as a result of extensive replacement intervals, reduced downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear liners are released throughout a wide spectrum of industrial fields where material deterioration positions operational and financial obstacles.
In mining and mineral handling, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from unpleasant slurries containing quartz, hematite, and other hard minerals.
In power plants, alumina tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator elements exposed to fly ash disintegration.
Cement makers use alumina linings in raw mills, kiln inlet zones, and clinker conveyors to deal with the highly rough nature of cementitious products.
The steel sector uses them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal tons is crucial.
Also in less standard applications such as waste-to-energy plants and biomass handling systems, alumina porcelains supply sturdy security versus chemically aggressive and coarse products.
4.2 Emerging Fads: Compound Equipments, Smart Liners, and Sustainability
Present research study focuses on boosting the sturdiness and capability of alumina wear systems via composite layout.
Alumina-zirconia (Al ₂ O FOUR-ZrO TWO) compounds take advantage of change strengthening from zirconia to enhance split resistance, while alumina-titanium carbide (Al ₂ O TWO-TiC) grades supply improved performance in high-temperature sliding wear.
An additional innovation includes embedding sensing units within or below ceramic linings to monitor wear development, temperature, and effect frequency– enabling predictive maintenance and digital double assimilation.
From a sustainability viewpoint, the extensive service life of alumina linings minimizes product usage and waste generation, aligning with round economic situation principles in commercial procedures.
Recycling of invested ceramic linings right into refractory aggregates or building materials is likewise being discovered to reduce ecological footprint.
Finally, alumina ceramic wear linings stand for a cornerstone of modern commercial wear protection modern technology.
Their exceptional solidity, thermal stability, and chemical inertness, integrated with fully grown manufacturing and setup methods, make them indispensable in combating material degradation throughout heavy industries.
As product scientific research advances and digital surveillance becomes much more incorporated, the next generation of smart, resilient alumina-based systems will even more boost operational performance and sustainability in abrasive atmospheres.
