1. Material Basics and Morphological Advantages
1.1 Crystal Structure and Chemical Composition

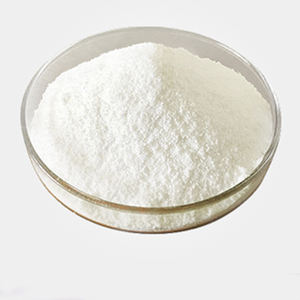

(Spherical alumina)
Spherical alumina, or round aluminum oxide (Al ₂ O FIVE), is a synthetically created ceramic product characterized by a distinct globular morphology and a crystalline framework mainly in the alpha (α) stage.
Alpha-alumina, the most thermodynamically steady polymorph, features a hexagonal close-packed plan of oxygen ions with aluminum ions inhabiting two-thirds of the octahedral interstices, causing high lattice power and exceptional chemical inertness.
This stage shows exceptional thermal security, keeping stability up to 1800 ° C, and resists response with acids, antacid, and molten steels under many industrial problems.
Unlike uneven or angular alumina powders derived from bauxite calcination, round alumina is engineered through high-temperature procedures such as plasma spheroidization or flame synthesis to attain consistent satiation and smooth surface structure.
The transformation from angular precursor bits– commonly calcined bauxite or gibbsite– to thick, isotropic balls removes sharp edges and internal porosity, improving packing efficiency and mechanical durability.
High-purity grades (≥ 99.5% Al ₂ O TWO) are crucial for digital and semiconductor applications where ionic contamination must be reduced.
1.2 Fragment Geometry and Packaging Actions
The defining function of round alumina is its near-perfect sphericity, normally evaluated by a sphericity index > 0.9, which substantially influences its flowability and packaging thickness in composite systems.
In comparison to angular particles that interlock and create voids, spherical bits roll past each other with marginal rubbing, making it possible for high solids filling during formula of thermal interface materials (TIMs), encapsulants, and potting compounds.
This geometric uniformity permits optimum theoretical packing densities surpassing 70 vol%, much exceeding the 50– 60 vol% regular of irregular fillers.
Greater filler filling directly equates to improved thermal conductivity in polymer matrices, as the constant ceramic network supplies efficient phonon transportation paths.
In addition, the smooth surface area reduces endure handling devices and minimizes viscosity surge throughout mixing, improving processability and diffusion security.
The isotropic nature of rounds additionally protects against orientation-dependent anisotropy in thermal and mechanical homes, making certain consistent efficiency in all instructions.
2. Synthesis Approaches and Quality Control
2.1 High-Temperature Spheroidization Techniques
The production of spherical alumina primarily counts on thermal methods that melt angular alumina particles and enable surface area tension to reshape them into rounds.
( Spherical alumina)
Plasma spheroidization is the most widely made use of industrial technique, where alumina powder is injected into a high-temperature plasma flame (up to 10,000 K), triggering immediate melting and surface tension-driven densification into excellent rounds.
The molten droplets solidify swiftly during flight, creating dense, non-porous bits with uniform size distribution when coupled with precise category.
Alternative methods include flame spheroidization utilizing oxy-fuel lanterns and microwave-assisted home heating, though these typically use lower throughput or less control over bit size.
The starting material’s pureness and fragment dimension distribution are essential; submicron or micron-scale precursors produce likewise sized balls after processing.
Post-synthesis, the product undergoes strenuous sieving, electrostatic splitting up, and laser diffraction analysis to make sure tight particle size distribution (PSD), usually varying from 1 to 50 µm depending upon application.
2.2 Surface Area Adjustment and Practical Tailoring
To boost compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is commonly surface-treated with coupling agents.
Silane coupling agents– such as amino, epoxy, or plastic useful silanes– kind covalent bonds with hydroxyl groups on the alumina surface while providing natural capability that connects with the polymer matrix.
This therapy boosts interfacial attachment, decreases filler-matrix thermal resistance, and stops cluster, leading to more uniform compounds with exceptional mechanical and thermal efficiency.
Surface finishes can likewise be crafted to impart hydrophobicity, boost diffusion in nonpolar materials, or enable stimuli-responsive behavior in wise thermal products.
Quality assurance includes measurements of BET surface, tap thickness, thermal conductivity (typically 25– 35 W/(m · K )for dense α-alumina), and contamination profiling by means of ICP-MS to exclude Fe, Na, and K at ppm degrees.
Batch-to-batch consistency is essential for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and Interface Design
Spherical alumina is mainly employed as a high-performance filler to enhance the thermal conductivity of polymer-based products utilized in electronic product packaging, LED illumination, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), filling with 60– 70 vol% round alumina can enhance this to 2– 5 W/(m · K), adequate for reliable heat dissipation in compact devices.
The high intrinsic thermal conductivity of α-alumina, combined with marginal phonon spreading at smooth particle-particle and particle-matrix user interfaces, allows effective warm transfer through percolation networks.
Interfacial thermal resistance (Kapitza resistance) continues to be a limiting element, however surface functionalization and maximized diffusion techniques aid lessen this barrier.
In thermal user interface materials (TIMs), round alumina decreases call resistance in between heat-generating elements (e.g., CPUs, IGBTs) and warmth sinks, stopping getting too hot and extending device life expectancy.
Its electric insulation (resistivity > 10 ¹² Ω · cm) ensures safety in high-voltage applications, differentiating it from conductive fillers like steel or graphite.
3.2 Mechanical Security and Reliability
Past thermal performance, round alumina boosts the mechanical effectiveness of compounds by boosting hardness, modulus, and dimensional stability.
The spherical shape distributes tension consistently, reducing crack initiation and propagation under thermal cycling or mechanical load.
This is particularly vital in underfill materials and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) mismatch can cause delamination.
By readjusting filler loading and fragment dimension circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or printed motherboard, lessening thermo-mechanical tension.
Additionally, the chemical inertness of alumina protects against destruction in damp or harsh atmospheres, making certain long-lasting integrity in automotive, commercial, and outdoor electronics.
4. Applications and Technical Advancement
4.1 Electronic Devices and Electric Lorry Systems
Round alumina is a crucial enabler in the thermal management of high-power electronic devices, including insulated gateway bipolar transistors (IGBTs), power materials, and battery management systems in electrical automobiles (EVs).
In EV battery packs, it is incorporated right into potting substances and stage adjustment materials to prevent thermal runaway by equally dispersing heat throughout cells.
LED suppliers use it in encapsulants and secondary optics to maintain lumen outcome and color consistency by minimizing joint temperature.
In 5G facilities and information facilities, where warm change thickness are rising, round alumina-filled TIMs make certain secure procedure of high-frequency chips and laser diodes.
Its duty is expanding into innovative packaging modern technologies such as fan-out wafer-level packaging (FOWLP) and ingrained die systems.
4.2 Arising Frontiers and Lasting Technology
Future developments concentrate on hybrid filler systems integrating spherical alumina with boron nitride, aluminum nitride, or graphene to attain synergistic thermal efficiency while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being checked out for clear porcelains, UV finishings, and biomedical applications, though challenges in diffusion and expense stay.
Additive production of thermally conductive polymer compounds utilizing round alumina makes it possible for facility, topology-optimized warm dissipation structures.
Sustainability efforts include energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle evaluation to reduce the carbon footprint of high-performance thermal products.
In summary, round alumina stands for a vital engineered product at the junction of porcelains, compounds, and thermal science.
Its unique mix of morphology, pureness, and efficiency makes it vital in the continuous miniaturization and power rise of modern-day electronic and energy systems.
