1. Material Fundamentals and Microstructural Design
1.1 Composition and Crystallographic Security of Alumina

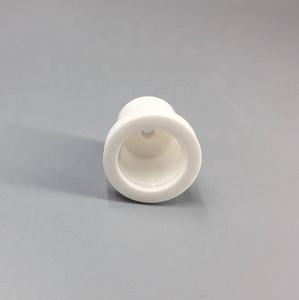

(Alumina Ceramic Nozzles)
Alumina (Al Two O ₃), particularly in its alpha stage, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, supplying outstanding thermal stability, chemical inertness, and mechanical strength at raised temperatures.
High-purity alumina (usually 95– 99.9% Al ₂ O SIX) is favored for nozzle applications because of its marginal contamination web content, which reduces grain border weakening and boosts resistance to thermal and chemical degradation.
The microstructure, consisting of penalty, equiaxed grains, is crafted throughout sintering to decrease porosity and optimize density, straight influencing the nozzle’s erosion resistance and structural stability under high-velocity fluid circulation.
Ingredients such as MgO are often introduced in trace total up to inhibit abnormal grain growth during sintering, making certain a consistent microstructure that supports lasting integrity.
1.2 Mechanical and Thermal Characteristics Relevant to Nozzle Performance
Alumina ceramics exhibit a Vickers hardness going beyond 1800 HV, making them highly resistant to abrasive wear from particulate-laden fluids, a crucial quality in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive strength over 2 Grade point average, alumina nozzles preserve dimensional security under high-pressure operation, generally varying from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical homes approximately 1600 ° C, with a low thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that gives superb resistance to thermal shock– essential when exposed to fast temperature level variations throughout start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without inducing thermal gradients that could bring about cracking, balancing insulation and warmth administration needs.
2. Manufacturing Processes and Geometric Accuracy
2.1 Forming and Sintering Methods for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles begins with high-purity alumina powder, which is processed into an environment-friendly body using methods such as cool isostatic pushing (CIP), shot molding, or extrusion, depending upon the desired geometry and set dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing uses uniform pressure from all instructions, producing a homogeneous thickness distribution vital for lessening defects during sintering.
Shot molding is used for intricate nozzle shapes with internal tapers and fine orifices, allowing high dimensional precision and reproducibility in automation.
After shaping, the environment-friendly compacts go through a two-stage thermal therapy: debinding to get rid of organic binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to accomplish near-theoretical density with solid-state diffusion.
Exact control of sintering environment and heating/cooling rates is essential to protect against warping, splitting, or grain coarsening that can endanger nozzle performance.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles commonly call for accuracy machining to accomplish tight tolerances, particularly in the orifice area where circulation dynamics are most sensitive to surface area coating and geometry.
Diamond grinding and washing are utilized to refine inner and external surface areas, achieving surface area roughness values below 0.1 µm, which decreases flow resistance and prevents particle build-up.
The orifice, usually varying from 0.3 to 3.0 mm in size, must be free of micro-cracks and chamfers to guarantee laminar circulation and constant spray patterns.
Non-destructive screening techniques such as optical microscopy, X-ray inspection, and pressure biking examinations are used to validate structural integrity and efficiency uniformity before release.
Personalized geometries, consisting of convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole arrays for fan spray patterns, are progressively fabricated making use of advanced tooling and computer-aided layout (CAD)-driven production.
3. Practical Benefits Over Alternate Nozzle Materials
3.1 Superior Disintegration and Corrosion Resistance
Compared to metallic (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina shows far higher resistance to rough wear, especially in atmospheres including silica sand, garnet, or other difficult abrasives utilized in surface preparation and cutting.
Steel nozzles deteriorate quickly as a result of micro-fracturing and plastic contortion, calling for regular replacement, whereas alumina nozzles can last 3– 5 times much longer, dramatically reducing downtime and operational costs.
Furthermore, alumina is inert to most acids, alkalis, and solvents, making it ideal for chemical splashing, etching, and cleansing procedures where metallic parts would corrode or contaminate the liquid.
This chemical stability is specifically useful in semiconductor production, pharmaceutical handling, and food-grade applications needing high purity.
3.2 Thermal and Electrical Insulation Properties
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · cm) makes it suitable for use in electrostatic spray finish systems, where it protects against charge leak and makes certain uniform paint atomization.
Its thermal insulation capacity enables safe procedure in high-temperature spraying atmospheres, such as flame splashing or thermal cleansing, without heat transfer to bordering elements.
Unlike steels, alumina does not catalyze unwanted chemical reactions in responsive fluid streams, preserving the stability of delicate solutions.
4. Industrial Applications and Technological Impact
4.1 Duties in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are essential in rough blasting systems for corrosion elimination, paint removing, and surface texturing in automobile, aerospace, and building and construction sectors.
Their capacity to maintain a consistent orifice size over extended usage guarantees uniform rough speed and impact angle, directly influencing surface coating top quality and process repeatability.
In rough waterjet cutting, alumina focusing tubes guide the high-pressure water-abrasive blend, withstanding abrasive forces that would quickly weaken softer materials.
4.2 Usage in Additive Production, Spray Covering, and Liquid Control
In thermal spray systems, such as plasma and flame splashing, alumina nozzles direct high-temperature gas circulations and molten particles onto substrates, gaining from their thermal shock resistance and dimensional stability.
They are likewise utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance ensures long-term application precision.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles deliver great powders or thick pastes with very little clogging or wear.
Arising applications consist of microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina parts use resilience and biocompatibility.
In recap, alumina ceramic nozzles stand for an essential intersection of materials scientific research and industrial design.
Their remarkable mix of hardness, thermal security, and chemical resistance allows trusted performance in several of the most demanding liquid handling environments.
As industrial processes press towards greater pressures, finer tolerances, and much longer service periods, alumina ceramics continue to establish the criterion for resilient, high-precision flow control elements.
