1. Material Qualities and Architectural Style
1.1 Composition and Crystalline Phases of Alumina

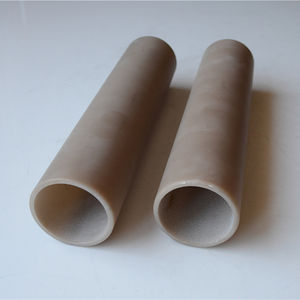

( Alumina Ceramic Tubes)
Alumina (Al Two O SIX) ceramic tubes are largely made from high-purity light weight aluminum oxide, with pureness levels generally ranging from 90% to 99.8%, relying on the desired application.
The dominant crystalline phase in fully dense, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal structure and phenomenal thermodynamic security.
This phase transition from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs over 1100 ° C and causes a dense, interlocking microstructure that provides outstanding mechanical strength and chemical resistance.
Higher pureness qualities (â„ 99.5%) make the most of solidity, put on resistance, and dielectric performance, while lower-purity solutions may integrate additional phases like mullite or glazed grain limit stages to minimize cost or tailor thermal growth.
The ability to regulate grain dimension, porosity, and stage make-up during processing permits engineers to make improvements alumina tubes for details useful demands throughout varied industrial domains.
1.2 Mechanical, Thermal, and Electrical Residence
Alumina ceramic tubes exhibit an unique mix of physical properties that make them indispensable in demanding engineering atmospheres.
With a Vickers firmness going beyond 1500 HV, they are extremely immune to abrasion and disintegration, outperforming most metals and polymers in wear-prone systems.
Their compressive strength can get to 2000 MPa, allowing architectural usage under high mechanical loads, while flexural stamina normally ranges from 300 to 500 MPa, depending upon thickness and surface area coating.
Thermally, alumina maintains stability as much as 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal expansion (~ 8 ppm/K), contributing to outstanding thermal shock resistance when correctly made.
Although its thermal conductivity (~ 30 W/(m · K)) is modest compared to steels or light weight aluminum nitride, it suffices for several high-temperature applications where electrical insulation and architectural stability are focused on.
Electrically, alumina is an impressive insulator with volume resistivity > 10 Âč⎠Ω · cm and high dielectric strength (> 15 kV/mm), making it ideal for electrical feedthroughs, sensing unit housings, and high-voltage insulation.

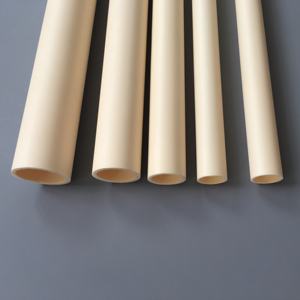

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Forming and Developing Strategies
The production of alumina ceramic tubes involves innovative creating approaches customized to achieve precise dimensions, wall thickness uniformity, and surface quality.
Usual methods include extrusion, isostatic pushing, and slip spreading, each suited to various dimension arrays and efficiency needs.
Extrusion is commonly utilized for long, straight tubes with constant cross-sections, where a plasticized alumina paste is required through a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies consistent pressure from all instructions to portable eco-friendly bodies, reducing distortion and boosting density homogeneity.
Slide casting, including the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is ideal for complicated or large-diameter geometries with variable wall density.
After forming, tubes undergo mindful drying to avoid cracking, adhered to by binder fatigue and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional stability.
2.2 Finishing and Quality Control
Post-sintering procedures such as centerless grinding, washing, and brightening are employed to accomplish limited tolerances, smooth surface coatings, and specific internal and external diameters.
Resistances as limited as ± 0.01 mm are achievable for crucial applications in semiconductor processing or analytical instrumentation.
Surface area roughness can be minimized to Ra < 0.1 ”m, lessening bit trapping and improving compatibility with ultra-high vacuum (UHV) or cleanroom atmospheres.
Non-destructive screening approaches– including ultrasonic assessment, X-ray radiography, and color penetrant screening– make certain architectural honesty and lack of cracks or gaps.
Dimensional width making use of coordinate gauging devices (CMM) or laser scanning confirms conformity with layout specifications, specifically for customized or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Degradation
Among one of the most compelling benefits of alumina ceramic tubes is their capacity to withstand severe thermal and chemical conditions where steels and polymers fall short.
They remain dimensionally steady and mechanically durable in continual service at temperature levels above 1500 ° C, making them suitable for heater liners, thermocouple security sheaths, and glowing heating unit tubes.
Their inertness to thaw steels (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (other than hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical handling devices.
In oxidizing and decreasing atmospheres, alumina does not degrade or catalyze undesirable responses, maintaining process pureness in semiconductor and glass manufacturing.
This chemical inertness likewise stops contamination in high-purity liquid managing systems, including those used in pharmaceutical and food processing markets.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma settings, alumina tubes serve as insulating obstacles that preserve circuit integrity under high voltage and raised temperature.
They are made use of in high-intensity discharge (HID) lamps, where they contain ionized gases at temperature levels surpassing 1000 ° C while standing up to electric capacities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas circulation elements, resisting ion bombardment and thermal cycling without breaking or outgassing.
Their reduced dielectric loss and high arc resistance prevent electrical tracking and break down, guaranteeing lengthy service life in switchgear and power transmission parts.
These residential properties are important in keeping process stability and devices reliability in advanced manufacturing and energy systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are indispensable to a large range of commercial processes that demand sturdiness under severe conditions.
In thermal processing, they act as safety sheaths for thermocouples and burner in kilns, heaters, and warm treatment devices, securing delicate parts from harsh ambiences and mechanical wear.
In fluid handling, they carry hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits rapid heating and cooling cycles without failing, a vital advantage in cyclic commercial operations.
In glass manufacturing, alumina tubes direct liquified glass flows and support developing devices, resisting disintegration from thick, high-temperature melts.
4.2 Advanced Technologies and Future Assimilation
Beyond standard commercial usages, alumina tubes are discovering new roles in cutting-edge modern technologies.
In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metallic contamination have to be decreased.
In medical tools, biocompatible alumina tubes serve as protecting parts in surgical devices, oral implants, and diagnostic sensing units.
Study is checking out functionalized alumina tubes with ingrained sensing units or conductive traces for wise structural tracking in aerospace and energy systems.
Additive production (3D printing) of alumina is becoming a method to create intricate tube geometries with inner networks or rated make-ups, allowing next-generation heat exchangers and microreactors.
As sectors push toward greater effectiveness, cleaner processes, and greater integrity, alumina ceramic tubes continue to advance as making it possible for elements in the framework of modern innovation.
In recap, alumina ceramic tubes represent a fully grown yet dynamically advancing course of crafted materials, integrating outstanding thermal, mechanical, and electrical efficiency in a solitary not natural channel.
Their versatility across extreme settings guarantees their ongoing relevance in both established industrial systems and emerging state-of-the-art applications.
