1. Make-up and Structural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Stability

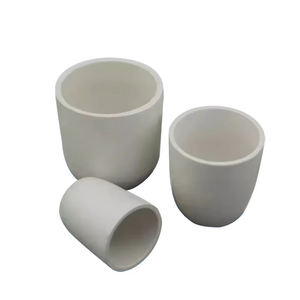

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, a synthetic kind of silicon dioxide (SiO â) stemmed from the melting of natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, merged silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys exceptional thermal shock resistance and dimensional security under quick temperature level adjustments.
This disordered atomic framework avoids bosom along crystallographic airplanes, making integrated silica less vulnerable to splitting throughout thermal cycling contrasted to polycrystalline porcelains.
The material displays a reduced coefficient of thermal growth (~ 0.5 Ă 10 â»â¶/ K), among the most affordable amongst design products, enabling it to endure extreme thermal slopes without fracturing– a crucial home in semiconductor and solar cell production.
Integrated silica likewise keeps superb chemical inertness versus a lot of acids, molten metals, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH web content) allows continual operation at raised temperatures required for crystal development and metal refining procedures.
1.2 Purity Grading and Trace Element Control
The efficiency of quartz crucibles is highly dependent on chemical pureness, particularly the concentration of metallic impurities such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace quantities (parts per million level) of these pollutants can move into molten silicon during crystal growth, deteriorating the electrical homes of the resulting semiconductor material.
High-purity grades made use of in electronics manufacturing normally include over 99.95% SiO â, with alkali metal oxides limited to much less than 10 ppm and change steels below 1 ppm.
Impurities originate from raw quartz feedstock or handling equipment and are lessened through cautious option of mineral sources and filtration techniques like acid leaching and flotation protection.
In addition, the hydroxyl (OH) content in integrated silica affects its thermomechanical actions; high-OH kinds provide far better UV transmission yet reduced thermal security, while low-OH versions are liked for high-temperature applications due to reduced bubble development.

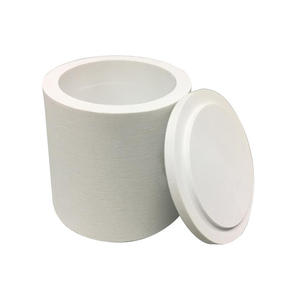

( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Layout
2.1 Electrofusion and Developing Strategies
Quartz crucibles are mainly generated through electrofusion, a procedure in which high-purity quartz powder is fed into a turning graphite mold within an electrical arc furnace.
An electrical arc produced between carbon electrodes thaws the quartz bits, which strengthen layer by layer to create a smooth, thick crucible shape.
This technique produces a fine-grained, uniform microstructure with marginal bubbles and striae, vital for consistent warm distribution and mechanical stability.
Alternative methods such as plasma combination and flame fusion are utilized for specialized applications calling for ultra-low contamination or details wall density accounts.
After casting, the crucibles undergo regulated air conditioning (annealing) to alleviate internal stress and anxieties and avoid spontaneous cracking during service.
Surface ending up, consisting of grinding and polishing, makes sure dimensional accuracy and reduces nucleation sites for undesirable crystallization during usage.
2.2 Crystalline Layer Engineering and Opacity Control
A defining attribute of modern quartz crucibles, particularly those utilized in directional solidification of multicrystalline silicon, is the crafted inner layer framework.
Throughout production, the internal surface area is usually treated to promote the formation of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO â– upon first home heating.
This cristobalite layer functions as a diffusion obstacle, decreasing direct interaction between liquified silicon and the underlying integrated silica, therefore minimizing oxygen and metal contamination.
Furthermore, the visibility of this crystalline phase improves opacity, boosting infrared radiation absorption and advertising more uniform temperature level circulation within the thaw.
Crucible designers very carefully stabilize the density and connection of this layer to avoid spalling or fracturing as a result of volume changes throughout stage shifts.
3. Functional Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Development Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into liquified silicon kept in a quartz crucible and slowly drew upwards while turning, permitting single-crystal ingots to form.
Although the crucible does not directly contact the expanding crystal, interactions between liquified silicon and SiO â wall surfaces result in oxygen dissolution right into the thaw, which can impact carrier lifetime and mechanical toughness in completed wafers.
In DS processes for photovoltaic-grade silicon, massive quartz crucibles enable the controlled air conditioning of hundreds of kgs of molten silicon right into block-shaped ingots.
Right here, coatings such as silicon nitride (Si four N â) are applied to the internal surface area to stop attachment and help with very easy release of the strengthened silicon block after cooling.
3.2 Deterioration Devices and Service Life Limitations
In spite of their robustness, quartz crucibles degrade during repeated high-temperature cycles as a result of a number of related mechanisms.
Viscous circulation or contortion takes place at long term exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric honesty.
Re-crystallization of fused silica into cristobalite produces interior stress and anxieties as a result of quantity growth, potentially causing splits or spallation that pollute the melt.
Chemical disintegration develops from reduction responses between molten silicon and SiO TWO: SiO â + Si â 2SiO(g), producing volatile silicon monoxide that escapes and compromises the crucible wall surface.
Bubble development, driven by caught gases or OH groups, further compromises structural strength and thermal conductivity.
These destruction paths limit the variety of reuse cycles and necessitate accurate procedure control to maximize crucible life expectancy and product return.
4. Arising Developments and Technological Adaptations
4.1 Coatings and Composite Adjustments
To boost performance and longevity, advanced quartz crucibles incorporate functional coatings and composite structures.
Silicon-based anti-sticking layers and drugged silica coverings boost release attributes and reduce oxygen outgassing throughout melting.
Some producers integrate zirconia (ZrO TWO) fragments into the crucible wall to enhance mechanical strength and resistance to devitrification.
Study is recurring into totally clear or gradient-structured crucibles developed to maximize convected heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Challenges
With raising need from the semiconductor and photovoltaic or pv markets, sustainable use quartz crucibles has actually ended up being a top priority.
Spent crucibles contaminated with silicon deposit are difficult to recycle as a result of cross-contamination dangers, bring about substantial waste generation.
Initiatives concentrate on developing reusable crucible linings, improved cleansing procedures, and closed-loop recycling systems to recoup high-purity silica for secondary applications.
As tool effectiveness demand ever-higher product purity, the role of quartz crucibles will certainly remain to evolve through advancement in products science and procedure engineering.
In recap, quartz crucibles represent a crucial interface between raw materials and high-performance digital items.
Their unique mix of pureness, thermal resilience, and architectural design makes it possible for the fabrication of silicon-based technologies that power modern-day computing and renewable energy systems.
