1. The Nanoscale Design and Material Science of Aerogels
1.1 Genesis and Fundamental Structure of Aerogel Materials

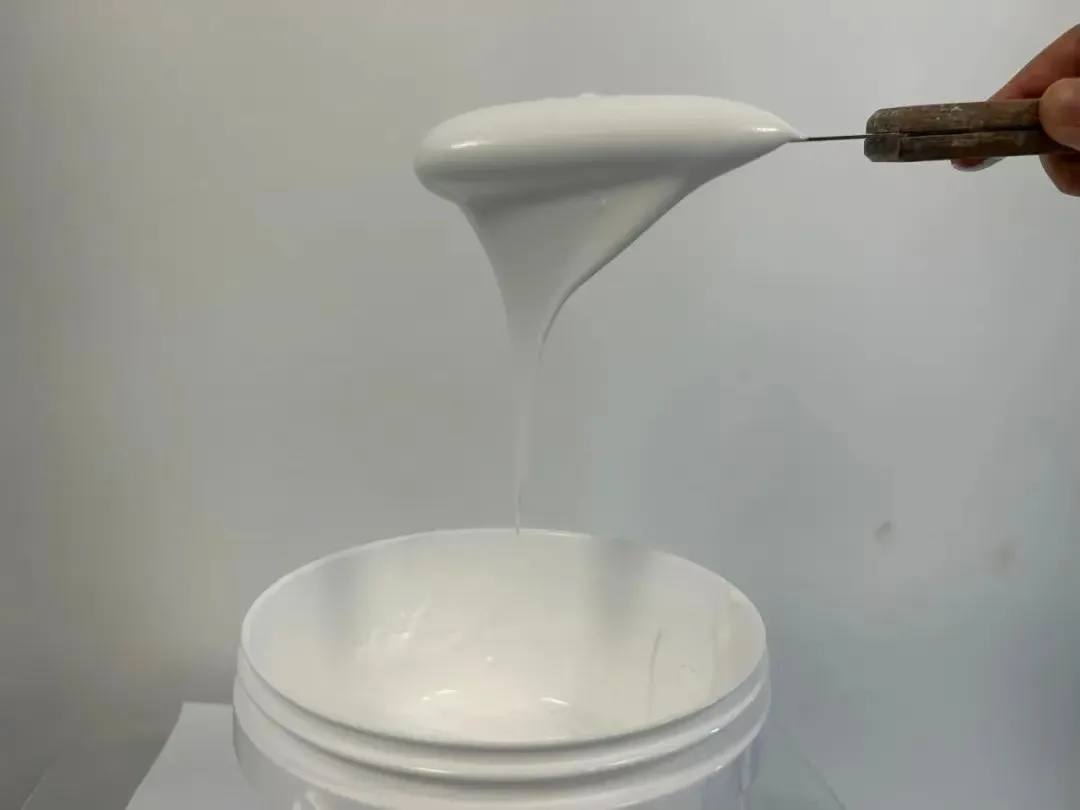

(Aerogel Insulation Coatings)
Aerogel insulation layers stand for a transformative advancement in thermal administration modern technology, rooted in the unique nanostructure of aerogels– ultra-lightweight, permeable materials stemmed from gels in which the liquid component is replaced with gas without falling down the solid network.
First created in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory curiosities for decades due to fragility and high manufacturing costs.
Nevertheless, current advancements in sol-gel chemistry and drying out techniques have actually made it possible for the combination of aerogel particles right into adaptable, sprayable, and brushable finishing formulas, opening their capacity for prevalent industrial application.
The core of aerogel’s phenomenal shielding ability hinges on its nanoscale porous structure: typically made up of silica (SiO â‚‚), the material exhibits porosity going beyond 90%, with pore dimensions primarily in the 2– 50 nm variety– well below the mean totally free path of air particles (~ 70 nm at ambient conditions).
This nanoconfinement dramatically reduces gaseous thermal transmission, as air particles can not successfully move kinetic energy with accidents within such restricted areas.
At the same time, the solid silica network is engineered to be very tortuous and alternate, minimizing conductive warmth transfer through the solid stage.
The outcome is a product with among the lowest thermal conductivities of any solid known– generally in between 0.012 and 0.018 W/m · K at space temperature level– exceeding standard insulation materials like mineral wool, polyurethane foam, or increased polystyrene.
1.2 Development from Monolithic Aerogels to Compound Coatings
Early aerogels were produced as fragile, monolithic blocks, limiting their use to niche aerospace and scientific applications.
The shift toward composite aerogel insulation coatings has actually been driven by the demand for adaptable, conformal, and scalable thermal barriers that can be applied to complicated geometries such as pipes, shutoffs, and uneven tools surface areas.
Modern aerogel coverings integrate carefully grated aerogel granules (usually 1– 10 µm in diameter) spread within polymeric binders such as polymers, silicones, or epoxies.

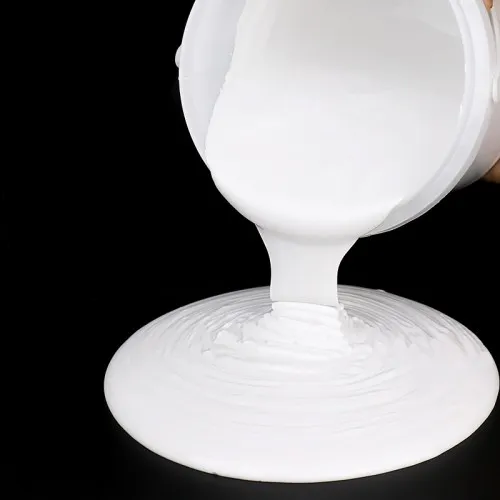

( Aerogel Insulation Coatings)
These hybrid solutions keep much of the inherent thermal performance of pure aerogels while getting mechanical toughness, adhesion, and weather resistance.
The binder phase, while a little enhancing thermal conductivity, offers crucial communication and allows application via conventional commercial techniques including spraying, rolling, or dipping.
Crucially, the volume fraction of aerogel particles is maximized to balance insulation efficiency with film stability– normally varying from 40% to 70% by quantity in high-performance solutions.
This composite strategy maintains the Knudsen result (the reductions of gas-phase transmission in nanopores) while enabling tunable residential properties such as versatility, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Warmth Transfer Suppression
2.1 Devices of Thermal Insulation at the Nanoscale
Aerogel insulation finishings attain their superior efficiency by simultaneously reducing all three modes of warmth transfer: transmission, convection, and radiation.
Conductive warm transfer is decreased through the mix of reduced solid-phase connectivity and the nanoporous structure that hinders gas molecule activity.
Since the aerogel network includes very thin, interconnected silica strands (typically simply a couple of nanometers in size), the pathway for phonon transport (heat-carrying lattice vibrations) is very restricted.
This structural design successfully decouples nearby areas of the coating, decreasing thermal linking.
Convective warm transfer is inherently absent within the nanopores due to the lack of ability of air to develop convection currents in such confined spaces.
Also at macroscopic scales, properly used aerogel finishings get rid of air gaps and convective loopholes that plague traditional insulation systems, particularly in vertical or above installments.
Radiative warmth transfer, which becomes significant at elevated temperatures (> 100 ° C), is minimized with the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients increase the coating’s opacity to infrared radiation, scattering and absorbing thermal photons prior to they can go across the finish density.
The harmony of these devices leads to a material that provides comparable insulation efficiency at a fraction of the thickness of conventional products– commonly achieving R-values (thermal resistance) numerous times higher per unit density.
2.2 Efficiency Across Temperature and Environmental Conditions
Among the most compelling benefits of aerogel insulation finishes is their regular performance across a broad temperature range, normally ranging from cryogenic temperatures (-200 ° C) to over 600 ° C, relying on the binder system utilized.
At low temperatures, such as in LNG pipes or refrigeration systems, aerogel coatings avoid condensation and lower warm access more successfully than foam-based alternatives.
At heats, specifically in industrial procedure devices, exhaust systems, or power generation centers, they shield underlying substrates from thermal destruction while minimizing power loss.
Unlike organic foams that might decay or char, silica-based aerogel finishes remain dimensionally stable and non-combustible, contributing to passive fire defense approaches.
Moreover, their low tide absorption and hydrophobic surface area treatments (usually achieved via silane functionalization) prevent efficiency destruction in moist or damp atmospheres– a typical failing setting for fibrous insulation.
3. Formula Techniques and Functional Assimilation in Coatings
3.1 Binder Selection and Mechanical Residential Or Commercial Property Engineering
The option of binder in aerogel insulation finishings is critical to balancing thermal performance with durability and application adaptability.
Silicone-based binders offer outstanding high-temperature security and UV resistance, making them suitable for exterior and commercial applications.
Acrylic binders give great attachment to metals and concrete, together with ease of application and low VOC emissions, optimal for constructing envelopes and a/c systems.
Epoxy-modified formulations enhance chemical resistance and mechanical toughness, helpful in marine or destructive environments.
Formulators additionally include rheology modifiers, dispersants, and cross-linking agents to make sure consistent fragment circulation, avoid working out, and enhance film formation.
Flexibility is very carefully tuned to stay clear of fracturing throughout thermal cycling or substrate deformation, specifically on dynamic structures like development joints or vibrating equipment.
3.2 Multifunctional Enhancements and Smart Covering Potential
Beyond thermal insulation, contemporary aerogel coverings are being crafted with additional capabilities.
Some formulas consist of corrosion-inhibiting pigments or self-healing agents that prolong the lifespan of metallic substratums.
Others integrate phase-change materials (PCMs) within the matrix to supply thermal power storage, smoothing temperature fluctuations in structures or electronic enclosures.
Emerging study explores the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ surveillance of finishing integrity or temperature level circulation– leading the way for “smart” thermal administration systems.
These multifunctional capabilities placement aerogel coverings not merely as easy insulators however as active parts in intelligent framework and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Power Performance in Structure and Industrial Sectors
Aerogel insulation finishes are significantly released in commercial structures, refineries, and nuclear power plant to minimize energy intake and carbon exhausts.
Applied to heavy steam lines, central heating boilers, and heat exchangers, they dramatically reduced warm loss, enhancing system efficiency and minimizing fuel demand.
In retrofit scenarios, their slim profile enables insulation to be included without major structural alterations, protecting area and minimizing downtime.
In property and commercial building, aerogel-enhanced paints and plasters are utilized on wall surfaces, roof coverings, and home windows to improve thermal comfort and reduce heating and cooling lots.
4.2 Particular Niche and High-Performance Applications
The aerospace, automotive, and electronic devices markets leverage aerogel layers for weight-sensitive and space-constrained thermal monitoring.
In electrical lorries, they safeguard battery loads from thermal runaway and exterior heat sources.
In electronics, ultra-thin aerogel layers protect high-power components and prevent hotspots.
Their usage in cryogenic storage, space environments, and deep-sea devices emphasizes their reliability in extreme environments.
As making scales and expenses decline, aerogel insulation coatings are positioned to end up being a foundation of next-generation lasting and resistant framework.
