1. Product Science and Structural Residence
1.1 Crystal Structure and Chemical Stability

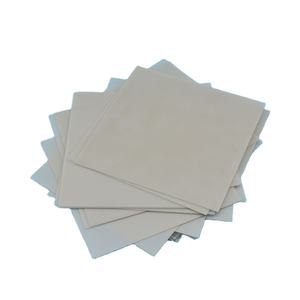

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of aluminum and nitrogen atoms bonded with strong covalent communications.
This robust atomic plan enhances AlN with remarkable thermal stability, preserving architectural honesty up to 2200 ° C in inert ambiences and standing up to decomposition under extreme thermal biking.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and several reactive gases, making it suitable for severe settings such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– creating just a slim protective Al two O two layer at surface upon direct exposure to air– guarantees lasting dependability without considerable degradation of bulk buildings.
In addition, AlN exhibits excellent electric insulation with a resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric toughness over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Qualities
The most defining attribute of light weight aluminum nitride is its outstanding thermal conductivity, typically ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over five times higher than that of alumina (≈ 30 W/(m · K)).
This performance stems from the low atomic mass of nitrogen and aluminum, integrated with strong bonding and minimal point issues, which permit efficient phonon transportation via the lattice.
Nonetheless, oxygen impurities are especially damaging; even trace amounts (above 100 ppm) alternative to nitrogen websites, developing aluminum openings and spreading phonons, thus dramatically lowering thermal conductivity.
High-purity AlN powders synthesized by means of carbothermal reduction or straight nitridation are essential to accomplish ideal heat dissipation.
Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric residential properties make it important in sensing units and acoustic wave gadgets, while its large bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency electronic systems.
2. Construction Procedures and Production Challenges

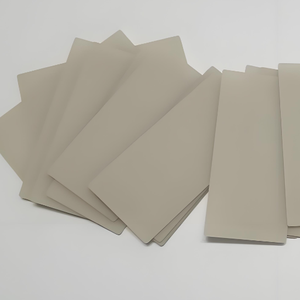

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, frequently accomplished with responses such as Al ₂ O ₃ + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder should be carefully grated and doped with sintering aids like Y ₂ O SIX, CaO, or rare planet oxides to promote densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These additives create short-term liquid stages that boost grain limit diffusion, allowing full densification (> 99% theoretical thickness) while lessening oxygen contamination.
Post-sintering annealing in carbon-rich settings can additionally lower oxygen content by eliminating intergranular oxides, consequently recovering peak thermal conductivity.
Achieving consistent microstructure with controlled grain size is vital to stabilize mechanical toughness, thermal efficiency, and manufacturability.
2.2 Substratum Forming and Metallization
Once sintered, AlN ceramics are precision-ground and washed to satisfy tight dimensional resistances needed for electronic product packaging, frequently down to micrometer-level monotony.
Through-hole drilling, laser cutting, and surface area pattern enable assimilation right into multilayer bundles and crossbreed circuits.
A vital action in substrate fabrication is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are bonded to AlN surface areas at elevated temperatures in a controlled atmosphere, forming a strong interface appropriate for high-current applications.
Different methods like energetic metal brazing (AMB) make use of titanium-containing solders to improve adhesion and thermal tiredness resistance, especially under duplicated power cycling.
Appropriate interfacial engineering guarantees reduced thermal resistance and high mechanical dependability in running devices.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Administration in Power Electronic Devices
AlN substrates master taking care of warmth produced by high-power semiconductor devices such as IGBTs, MOSFETs, and RF amplifiers made use of in electric vehicles, renewable energy inverters, and telecommunications framework.
Effective warmth extraction protects against localized hotspots, decreases thermal anxiety, and expands device life time by alleviating electromigration and delamination risks.
Contrasted to typical Al two O three substrates, AlN makes it possible for smaller plan dimensions and greater power thickness as a result of its exceptional thermal conductivity, allowing designers to press efficiency boundaries without endangering reliability.
In LED illumination and laser diodes, where joint temperature directly influences performance and color stability, AlN substrates significantly enhance luminescent outcome and operational life-span.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) likewise closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress and anxiety throughout thermal cycling.
3.2 Electric and Mechanical Reliability
Beyond thermal performance, AlN provides low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide regularity array, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against wetness ingress, eliminating corrosion threats in damp environments– an essential benefit over organic substrates.
Mechanically, AlN has high flexural strength (300– 400 MPa) and hardness (HV ≈ 1200), making sure durability throughout handling, assembly, and field procedure.
These qualities jointly contribute to enhanced system reliability, lowered failure prices, and reduced overall cost of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Systems
AlN ceramic substrates are now standard in advanced power components for commercial motor drives, wind and solar inverters, and onboard chargers in electric and hybrid vehicles.
In aerospace and protection, they sustain radar systems, digital war systems, and satellite communications, where efficiency under severe conditions is non-negotiable.
Medical imaging tools, including X-ray generators and MRI systems, likewise take advantage of AlN’s radiation resistance and signal stability.
As electrification patterns accelerate throughout transport and energy industries, demand for AlN substrates remains to expand, driven by the demand for small, reliable, and trustworthy power electronic devices.
4.2 Arising Combination and Sustainable Growth
Future developments concentrate on incorporating AlN right into three-dimensional packaging styles, embedded passive elements, and heterogeneous integration platforms combining Si, SiC, and GaN gadgets.
Research right into nanostructured AlN movies and single-crystal substrates intends to further boost thermal conductivity towards theoretical limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Initiatives to lower manufacturing prices with scalable powder synthesis, additive manufacturing of complex ceramic structures, and recycling of scrap AlN are getting momentum to boost sustainability.
Additionally, modeling devices utilizing limited component evaluation (FEA) and artificial intelligence are being employed to optimize substrate design for details thermal and electrical tons.
Finally, aluminum nitride ceramic substratums represent a cornerstone innovation in contemporary electronic devices, distinctively connecting the space in between electric insulation and extraordinary thermal conduction.
Their duty in enabling high-efficiency, high-reliability power systems emphasizes their strategic value in the ongoing evolution of digital and energy technologies.
