1. Basic Concepts and Process Categories
1.1 Definition and Core Device

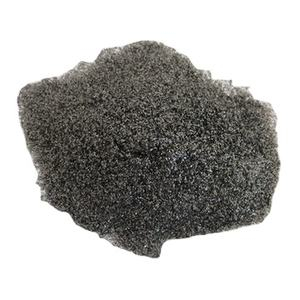

(3d printing alloy powder)
Metal 3D printing, likewise called metal additive manufacturing (AM), is a layer-by-layer fabrication technique that constructs three-dimensional metal elements straight from digital versions making use of powdered or cord feedstock.
Unlike subtractive approaches such as milling or transforming, which get rid of material to attain form, metal AM adds product just where required, enabling unprecedented geometric complexity with minimal waste.
The process begins with a 3D CAD version cut right into slim horizontal layers (normally 20– 100 µm thick). A high-energy resource– laser or electron beam– precisely melts or merges metal fragments according to every layer’s cross-section, which solidifies upon cooling down to form a thick solid.
This cycle repeats until the full component is constructed, usually within an inert environment (argon or nitrogen) to prevent oxidation of responsive alloys like titanium or aluminum.
The resulting microstructure, mechanical residential or commercial properties, and surface coating are governed by thermal history, check strategy, and product qualities, requiring precise control of process criteria.
1.2 Major Metal AM Technologies
The two leading powder-bed combination (PBF) technologies are Discerning Laser Melting (SLM) and Electron Beam Of Light Melting (EBM).
SLM makes use of a high-power fiber laser (normally 200– 1000 W) to fully melt steel powder in an argon-filled chamber, creating near-full density (> 99.5%) parts with fine attribute resolution and smooth surface areas.
EBM utilizes a high-voltage electron beam of light in a vacuum setting, operating at higher construct temperature levels (600– 1000 ° C), which lowers recurring stress and allows crack-resistant processing of weak alloys like Ti-6Al-4V or Inconel 718.
Past PBF, Directed Power Deposition (DED)– including Laser Metal Deposition (LMD) and Cable Arc Additive Manufacturing (WAAM)– feeds steel powder or cable into a molten pool created by a laser, plasma, or electric arc, ideal for massive repair work or near-net-shape elements.
Binder Jetting, though much less fully grown for metals, includes transferring a fluid binding representative onto steel powder layers, adhered to by sintering in a heater; it uses broadband yet lower density and dimensional accuracy.
Each innovation stabilizes trade-offs in resolution, construct price, material compatibility, and post-processing requirements, leading choice based upon application needs.
2. Products and Metallurgical Considerations
2.1 Typical Alloys and Their Applications
Steel 3D printing supports a wide variety of engineering alloys, including stainless steels (e.g., 316L, 17-4PH), device steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), light weight aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless-steels supply deterioration resistance and modest toughness for fluidic manifolds and medical tools.

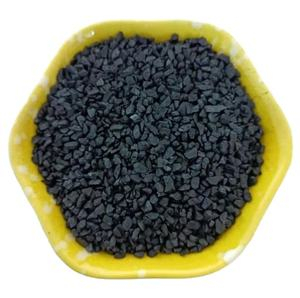

(3d printing alloy powder)
Nickel superalloys master high-temperature atmospheres such as turbine blades and rocket nozzles as a result of their creep resistance and oxidation security.
Titanium alloys integrate high strength-to-density proportions with biocompatibility, making them excellent for aerospace brackets and orthopedic implants.
Aluminum alloys make it possible for lightweight structural parts in automotive and drone applications, though their high reflectivity and thermal conductivity present obstacles for laser absorption and melt swimming pool stability.
Material growth proceeds with high-entropy alloys (HEAs) and functionally graded make-ups that shift homes within a single part.
2.2 Microstructure and Post-Processing Requirements
The fast home heating and cooling cycles in metal AM create one-of-a-kind microstructures– frequently great mobile dendrites or columnar grains aligned with warmth flow– that vary dramatically from actors or functioned equivalents.
While this can boost strength via grain refinement, it may additionally introduce anisotropy, porosity, or recurring tensions that compromise exhaustion efficiency.
As a result, nearly all metal AM components need post-processing: tension alleviation annealing to decrease distortion, warm isostatic pressing (HIP) to shut interior pores, machining for critical resistances, and surface area finishing (e.g., electropolishing, shot peening) to boost tiredness life.
Warm therapies are tailored to alloy systems– for example, service aging for 17-4PH to attain precipitation hardening, or beta annealing for Ti-6Al-4V to optimize ductility.
Quality control relies upon non-destructive testing (NDT) such as X-ray calculated tomography (CT) and ultrasonic inspection to find inner flaws unnoticeable to the eye.
3. Style Freedom and Industrial Impact
3.1 Geometric Technology and Functional Assimilation
Metal 3D printing opens layout paradigms impossible with traditional production, such as internal conformal cooling channels in shot mold and mildews, latticework structures for weight reduction, and topology-optimized lots courses that lessen product use.
Components that as soon as needed setting up from dozens of parts can currently be published as monolithic units, reducing joints, fasteners, and prospective failing factors.
This practical integration enhances reliability in aerospace and clinical tools while reducing supply chain intricacy and inventory costs.
Generative layout formulas, combined with simulation-driven optimization, immediately create natural shapes that satisfy performance targets under real-world loads, pushing the boundaries of performance.
Customization at range becomes practical– oral crowns, patient-specific implants, and bespoke aerospace installations can be created economically without retooling.
3.2 Sector-Specific Fostering and Financial Worth
Aerospace leads adoption, with firms like GE Aviation printing fuel nozzles for jump engines– settling 20 components into one, decreasing weight by 25%, and improving longevity fivefold.
Clinical gadget manufacturers leverage AM for porous hip stems that motivate bone ingrowth and cranial plates matching person anatomy from CT scans.
Automotive companies make use of metal AM for rapid prototyping, lightweight brackets, and high-performance auto racing components where efficiency outweighs cost.
Tooling sectors gain from conformally cooled molds that reduced cycle times by as much as 70%, enhancing efficiency in mass production.
While machine expenses remain high (200k– 2M), declining rates, boosted throughput, and accredited product databases are increasing accessibility to mid-sized business and solution bureaus.
4. Obstacles and Future Instructions
4.1 Technical and Accreditation Obstacles
Despite progression, metal AM encounters obstacles in repeatability, credentials, and standardization.
Minor variations in powder chemistry, moisture web content, or laser focus can change mechanical properties, demanding extensive process control and in-situ surveillance (e.g., melt swimming pool video cameras, acoustic sensors).
Qualification for safety-critical applications– particularly in aviation and nuclear markets– needs extensive analytical recognition under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is lengthy and costly.
Powder reuse protocols, contamination threats, and lack of global material requirements better complicate commercial scaling.
Efforts are underway to develop electronic twins that link procedure parameters to component performance, allowing predictive quality assurance and traceability.
4.2 Emerging Patterns and Next-Generation Equipments
Future advancements include multi-laser systems (4– 12 lasers) that considerably boost develop rates, crossbreed devices incorporating AM with CNC machining in one platform, and in-situ alloying for custom structures.
Artificial intelligence is being integrated for real-time defect discovery and flexible criterion adjustment throughout printing.
Sustainable campaigns concentrate on closed-loop powder recycling, energy-efficient light beam resources, and life process assessments to measure ecological benefits over traditional methods.
Research right into ultrafast lasers, chilly spray AM, and magnetic field-assisted printing might overcome existing constraints in reflectivity, residual anxiety, and grain positioning control.
As these innovations develop, metal 3D printing will certainly shift from a specific niche prototyping device to a mainstream production technique– improving how high-value metal components are developed, manufactured, and released across markets.
