Boron Carbide Ceramics: Unveiling the Science, Residence, and Revolutionary Applications of an Ultra-Hard Advanced Product
1. Introduction to Boron Carbide: A Product at the Extremes
Boron carbide (B ₄ C) stands as one of one of the most remarkable synthetic products recognized to modern materials science, differentiated by its placement amongst the hardest materials on Earth, went beyond just by diamond and cubic boron nitride.

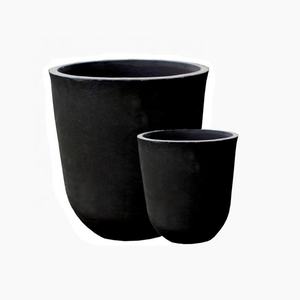

(Boron Carbide Ceramic)
First manufactured in the 19th century, boron carbide has evolved from a lab inquisitiveness into an essential part in high-performance engineering systems, defense technologies, and nuclear applications.
Its distinct combination of severe firmness, low thickness, high neutron absorption cross-section, and excellent chemical stability makes it vital in environments where traditional products fail.
This article supplies a comprehensive yet obtainable exploration of boron carbide ceramics, delving into its atomic structure, synthesis techniques, mechanical and physical residential properties, and the wide variety of sophisticated applications that utilize its phenomenal qualities.
The goal is to bridge the gap in between scientific understanding and functional application, providing visitors a deep, organized understanding right into just how this remarkable ceramic material is shaping modern-day technology.
2. Atomic Framework and Fundamental Chemistry
2.1 Crystal Lattice and Bonding Characteristics
Boron carbide crystallizes in a rhombohedral framework (area group R3m) with a complicated system cell that accommodates a variable stoichiometry, generally varying from B ₄ C to B ₁₀. FIVE C.
The fundamental foundation of this framework are 12-atom icosahedra composed largely of boron atoms, linked by three-atom direct chains that span the crystal latticework.
The icosahedra are extremely stable collections because of solid covalent bonding within the boron network, while the inter-icosahedral chains– usually containing C-B-C or B-B-B setups– play a critical role in establishing the product’s mechanical and electronic residential or commercial properties.
This special architecture leads to a material with a high level of covalent bonding (over 90%), which is directly in charge of its outstanding hardness and thermal security.
The visibility of carbon in the chain websites boosts architectural honesty, but inconsistencies from perfect stoichiometry can introduce defects that affect mechanical performance and sinterability.

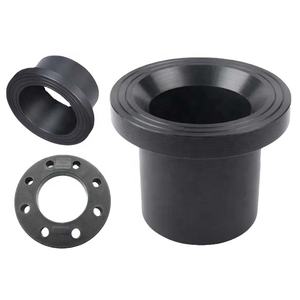

(Boron Carbide Ceramic)
2.2 Compositional Variability and Flaw Chemistry
Unlike lots of porcelains with dealt with stoichiometry, boron carbide displays a large homogeneity range, enabling significant variation in boron-to-carbon proportion without interfering with the total crystal structure.
This versatility allows customized buildings for particular applications, though it additionally presents challenges in handling and performance consistency.
Problems such as carbon deficiency, boron vacancies, and icosahedral distortions prevail and can influence firmness, crack toughness, and electric conductivity.
For instance, under-stoichiometric make-ups (boron-rich) have a tendency to display greater firmness but lowered crack strength, while carbon-rich variants might reveal enhanced sinterability at the expenditure of solidity.
Recognizing and regulating these flaws is a key emphasis in advanced boron carbide study, especially for optimizing efficiency in shield and nuclear applications.
3. Synthesis and Handling Techniques
3.1 Primary Production Techniques
Boron carbide powder is mostly generated through high-temperature carbothermal reduction, a process in which boric acid (H TWO BO FOUR) or boron oxide (B TWO O SIX) is responded with carbon resources such as oil coke or charcoal in an electrical arc heating system.
The reaction continues as complies with:
B ₂ O FIVE + 7C → 2B ₄ C + 6CO (gas)
This procedure takes place at temperature levels exceeding 2000 ° C, calling for substantial energy input.
The resulting crude B ₄ C is then milled and detoxified to eliminate recurring carbon and unreacted oxides.
Different approaches consist of magnesiothermic decrease, laser-assisted synthesis, and plasma arc synthesis, which provide better control over bit size and pureness yet are normally restricted to small or customized production.
3.2 Challenges in Densification and Sintering
Among the most considerable challenges in boron carbide ceramic production is accomplishing full densification as a result of its solid covalent bonding and reduced self-diffusion coefficient.
Conventional pressureless sintering usually causes porosity degrees over 10%, significantly jeopardizing mechanical toughness and ballistic performance.
To conquer this, advanced densification methods are used:
Warm Pressing (HP): Includes synchronised application of heat (usually 2000– 2200 ° C )and uniaxial pressure (20– 50 MPa) in an inert ambience, generating near-theoretical thickness.
Warm Isostatic Pressing (HIP): Applies high temperature and isotropic gas stress (100– 200 MPa), removing interior pores and enhancing mechanical integrity.
Stimulate Plasma Sintering (SPS): Utilizes pulsed direct present to quickly heat up the powder compact, making it possible for densification at lower temperatures and shorter times, maintaining great grain structure.
Additives such as carbon, silicon, or change metal borides are usually introduced to promote grain border diffusion and boost sinterability, though they must be carefully controlled to avoid derogatory firmness.
4. Mechanical and Physical Feature
4.1 Outstanding Hardness and Put On Resistance
Boron carbide is renowned for its Vickers firmness, typically varying from 30 to 35 GPa, putting it amongst the hardest recognized products.
This extreme firmness converts into outstanding resistance to unpleasant wear, making B ₄ C suitable for applications such as sandblasting nozzles, reducing tools, and wear plates in mining and exploration equipment.
The wear system in boron carbide involves microfracture and grain pull-out as opposed to plastic deformation, a feature of weak ceramics.
Nonetheless, its reduced fracture strength (normally 2.5– 3.5 MPa · m ¹ / ²) makes it vulnerable to break propagation under influence loading, necessitating cautious style in dynamic applications.
4.2 Low Density and High Particular Strength
With a density of about 2.52 g/cm FOUR, boron carbide is one of the lightest architectural porcelains readily available, providing a substantial advantage in weight-sensitive applications.
This low thickness, incorporated with high compressive strength (over 4 Grade point average), causes an outstanding details strength (strength-to-density proportion), critical for aerospace and defense systems where minimizing mass is paramount.
For instance, in individual and automobile armor, B FOUR C gives remarkable security each weight contrasted to steel or alumina, making it possible for lighter, more mobile protective systems.
4.3 Thermal and Chemical Security
Boron carbide displays excellent thermal security, preserving its mechanical buildings approximately 1000 ° C in inert ambiences.
It has a high melting point of around 2450 ° C and a low thermal expansion coefficient (~ 5.6 × 10 ⁻⁶/ K), adding to excellent thermal shock resistance.
Chemically, it is highly resistant to acids (except oxidizing acids like HNO TWO) and liquified steels, making it appropriate for usage in rough chemical environments and atomic power plants.
Nevertheless, oxidation comes to be considerable above 500 ° C in air, forming boric oxide and co2, which can deteriorate surface area stability in time.
Protective coverings or environmental control are frequently called for in high-temperature oxidizing conditions.
5. Secret Applications and Technological Influence
5.1 Ballistic Protection and Shield Systems
Boron carbide is a cornerstone material in modern light-weight shield as a result of its unrivaled combination of firmness and low density.
It is extensively made use of in:
Ceramic plates for body shield (Degree III and IV defense).
Car shield for army and police applications.
Aircraft and helicopter cabin security.
In composite shield systems, B FOUR C tiles are typically backed by fiber-reinforced polymers (e.g., Kevlar or UHMWPE) to soak up residual kinetic power after the ceramic layer cracks the projectile.
In spite of its high hardness, B ₄ C can undertake “amorphization” under high-velocity effect, a phenomenon that limits its effectiveness against very high-energy risks, prompting continuous research right into composite modifications and crossbreed porcelains.
5.2 Nuclear Engineering and Neutron Absorption
Among boron carbide’s most essential functions is in nuclear reactor control and security systems.
Due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons), B ₄ C is used in:
Control poles for pressurized water activators (PWRs) and boiling water reactors (BWRs).
Neutron securing parts.
Emergency situation shutdown systems.
Its capacity to soak up neutrons without considerable swelling or destruction under irradiation makes it a favored product in nuclear environments.
Nonetheless, helium gas generation from the ¹⁰ B(n, α)⁷ Li response can bring about internal pressure accumulation and microcracking gradually, requiring careful design and monitoring in long-lasting applications.
5.3 Industrial and Wear-Resistant Elements
Beyond defense and nuclear sectors, boron carbide finds considerable use in commercial applications calling for extreme wear resistance:
Nozzles for rough waterjet cutting and sandblasting.
Linings for pumps and shutoffs managing destructive slurries.
Reducing devices for non-ferrous materials.
Its chemical inertness and thermal stability permit it to do dependably in aggressive chemical processing environments where metal devices would rust quickly.
6. Future Potential Customers and Study Frontiers
The future of boron carbide porcelains lies in conquering its fundamental limitations– especially reduced crack durability and oxidation resistance– through advanced composite layout and nanostructuring.
Existing research directions consist of:
Advancement of B ₄ C-SiC, B FOUR C-TiB ₂, and B ₄ C-CNT (carbon nanotube) composites to improve sturdiness and thermal conductivity.
Surface area modification and layer technologies to enhance oxidation resistance.
Additive manufacturing (3D printing) of complicated B ₄ C components utilizing binder jetting and SPS techniques.
As products science remains to progress, boron carbide is positioned to play an also higher function in next-generation technologies, from hypersonic lorry parts to innovative nuclear blend activators.
Finally, boron carbide porcelains represent a peak of engineered product performance, integrating severe solidity, low density, and unique nuclear homes in a solitary substance.
Via continual technology in synthesis, handling, and application, this remarkable material remains to push the borders of what is possible in high-performance design.
