1. Basic Make-up and Architectural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Material Class

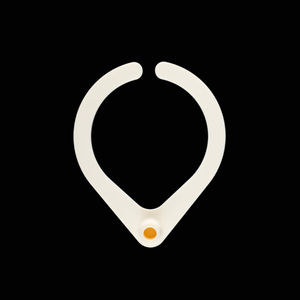

(Transparent Ceramics)
Quartz porcelains, also called merged quartz or fused silica ceramics, are advanced not natural products originated from high-purity crystalline quartz (SiO TWO) that undertake regulated melting and combination to create a thick, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike standard porcelains such as alumina or zirconia, which are polycrystalline and made up of multiple stages, quartz porcelains are mainly made up of silicon dioxide in a network of tetrahedrally collaborated SiO four systems, offering exceptional chemical pureness– typically exceeding 99.9% SiO TWO.
The distinction between merged quartz and quartz porcelains lies in processing: while fused quartz is usually a fully amorphous glass developed by fast cooling of liquified silica, quartz ceramics might entail controlled formation (devitrification) or sintering of great quartz powders to achieve a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical toughness.
This hybrid approach incorporates the thermal and chemical stability of integrated silica with boosted fracture sturdiness and dimensional stability under mechanical lots.
1.2 Thermal and Chemical Stability Devices
The remarkable performance of quartz ceramics in severe atmospheres originates from the solid covalent Si– O bonds that develop a three-dimensional network with high bond energy (~ 452 kJ/mol), giving exceptional resistance to thermal degradation and chemical strike.
These products show an extremely low coefficient of thermal development– roughly 0.55 × 10 ⁻⁶/ K over the range 20– 300 ° C– making them extremely immune to thermal shock, a critical characteristic in applications entailing rapid temperature level biking.
They preserve structural stability from cryogenic temperature levels approximately 1200 ° C in air, and even higher in inert environments, prior to softening begins around 1600 ° C.
Quartz porcelains are inert to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the security of the SiO ₂ network, although they are vulnerable to assault by hydrofluoric acid and solid alkalis at raised temperature levels.
This chemical durability, combined with high electric resistivity and ultraviolet (UV) transparency, makes them excellent for use in semiconductor handling, high-temperature furnaces, and optical systems subjected to extreme conditions.
2. Production Processes and Microstructural Control

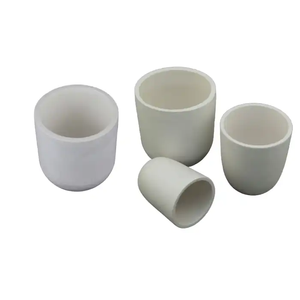

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz ceramics involves innovative thermal processing strategies created to maintain purity while accomplishing desired thickness and microstructure.
One usual method is electric arc melting of high-purity quartz sand, complied with by regulated air conditioning to develop integrated quartz ingots, which can after that be machined into components.
For sintered quartz ceramics, submicron quartz powders are compressed by means of isostatic pressing and sintered at temperatures between 1100 ° C and 1400 ° C, usually with minimal additives to advertise densification without inducing extreme grain growth or stage transformation.
An important difficulty in handling is avoiding devitrification– the spontaneous crystallization of metastable silica glass into cristobalite or tridymite phases– which can endanger thermal shock resistance due to volume modifications during stage transitions.
Producers utilize accurate temperature level control, quick cooling cycles, and dopants such as boron or titanium to subdue unwanted condensation and preserve a secure amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Manufacture
Recent advancements in ceramic additive manufacturing (AM), especially stereolithography (SHANTY TOWN) and binder jetting, have actually enabled the construction of intricate quartz ceramic elements with high geometric precision.
In these procedures, silica nanoparticles are suspended in a photosensitive material or selectively bound layer-by-layer, adhered to by debinding and high-temperature sintering to attain complete densification.
This strategy reduces material waste and enables the development of complex geometries– such as fluidic channels, optical dental caries, or warm exchanger elements– that are hard or difficult to achieve with standard machining.
Post-processing methods, including chemical vapor infiltration (CVI) or sol-gel coating, are often put on secure surface porosity and improve mechanical and environmental durability.
These innovations are expanding the application scope of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip gadgets, and personalized high-temperature fixtures.
3. Functional Residences and Efficiency in Extreme Environments
3.1 Optical Transparency and Dielectric Habits
Quartz porcelains show one-of-a-kind optical homes, including high transmission in the ultraviolet, visible, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them indispensable in UV lithography, laser systems, and space-based optics.
This transparency arises from the absence of electronic bandgap shifts in the UV-visible array and marginal spreading because of homogeneity and reduced porosity.
Furthermore, they possess excellent dielectric buildings, with a reduced dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, enabling their usage as protecting parts in high-frequency and high-power digital systems, such as radar waveguides and plasma reactors.
Their ability to maintain electrical insulation at raised temperatures further enhances integrity in demanding electric atmospheres.
3.2 Mechanical Habits and Long-Term Durability
Despite their high brittleness– a common attribute amongst ceramics– quartz porcelains show excellent mechanical toughness (flexural strength as much as 100 MPa) and excellent creep resistance at high temperatures.
Their solidity (around 5.5– 6.5 on the Mohs scale) gives resistance to surface abrasion, although treatment has to be taken throughout managing to avoid cracking or fracture breeding from surface flaws.
Ecological toughness is another essential advantage: quartz porcelains do not outgas significantly in vacuum cleaner, resist radiation damage, and preserve dimensional stability over extended exposure to thermal biking and chemical environments.
This makes them favored products in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure must be lessened.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Production Equipments
In the semiconductor industry, quartz porcelains are ubiquitous in wafer processing devices, including heating system tubes, bell jars, susceptors, and shower heads used in chemical vapor deposition (CVD) and plasma etching.
Their purity protects against metal contamination of silicon wafers, while their thermal stability guarantees uniform temperature circulation throughout high-temperature handling actions.
In solar production, quartz components are used in diffusion furnaces and annealing systems for solar battery manufacturing, where constant thermal accounts and chemical inertness are necessary for high yield and performance.
The need for bigger wafers and greater throughput has actually driven the development of ultra-large quartz ceramic structures with enhanced homogeneity and lowered problem thickness.
4.2 Aerospace, Defense, and Quantum Innovation Assimilation
Beyond industrial handling, quartz porcelains are employed in aerospace applications such as projectile assistance home windows, infrared domes, and re-entry vehicle elements due to their capability to endure severe thermal gradients and aerodynamic tension.
In protection systems, their openness to radar and microwave frequencies makes them suitable for radomes and sensing unit real estates.
Extra lately, quartz ceramics have actually discovered roles in quantum technologies, where ultra-low thermal growth and high vacuum compatibility are required for accuracy optical cavities, atomic traps, and superconducting qubit rooms.
Their ability to decrease thermal drift makes sure long comprehensibility times and high measurement accuracy in quantum computing and noticing systems.
In summary, quartz ceramics represent a course of high-performance materials that bridge the void between standard ceramics and specialized glasses.
Their unparalleled combination of thermal stability, chemical inertness, optical openness, and electric insulation enables innovations operating at the limitations of temperature, pureness, and precision.
As producing strategies develop and require grows for products capable of enduring significantly severe problems, quartz porcelains will certainly remain to play a foundational function ahead of time semiconductor, power, aerospace, and quantum systems.
